Plug-in Architecture Loses an Icon



nakagin-scarletgreen

With Kisho Kurokawa’s Nakagin Capsule Tower (photo: Scarletgreen/Flickr) headed for demolition, the world will lose not just one of the few executed works of Japanese Metabolism, as noted earlier this month by Nicolai Ouroussoff in the New York Times, but a rare built example of plug-in architecture.  The Capsule Tower might at first appear no more than a quaint, dated vision of the future, but a look at its durable influence and vital legacy show an icon of growing historic significance whose loss will loom larger in the years to come.

hand3

The plug-in concept dates from an illustration by Le Corbusier for his 1947-52 Unite d’Habitation highrise apartment block in Marseilles, which in the words of architectural historian Kenneth Frampton “went so far as to envisage complete apartments being hoisted directly into position as prefabricated units, an idea depicted in a provocative photomontage where a godlike hand simply inserts factory-made dwellings into the frame, like stacking bottles in a wine rack . . . although this was not the manner in which the units could finally be fabricated and assembled.” (Le Corbusier, by Kenneth Frampton, Thames &  Hudson, 2001, p. 156)

 photo-rightee-flickr-creative-commons

In setting his apartments back from the face of the concrete frame of  the Unite d’Habitation (Photo: Rightee/Flickr), Corbusier not only created recessed balconies, but expressed the “wine rack” building frame and the opportunity for color to emphasize the individuality of dwellings.  Both the unexecuted idea of modular plug-in units and the more easily achieved distinct expression of cellular units created their own traditions.

 plug_in_city_53

In the 1960s, the English Archigram group proposed individual buildings and an entire city made of prefabricated components attached to fixed infrastructures.  Plug-in City, designed by Archigram’s Peter Cook from 1962-64, had an infrastructure with rail-mounted cranes that would install and replace prefabricated housing, office, and shop modules planned for obsolescence.  The organically responsive, self-refreshing city would support change and growth.  This organic quality gave the name “Metabolism” to a parallel movement in Japan which shared many of Archigram’s ideas.

 capsule_4

A tower of plug-in “capsule” homes was designed by Archigram’s Warren Chalk in 1964.  Inspired by space capsules, Chalk’s prefabricated dwelling modules would plug into a central shaft providing structural support, vertical circulation and services.  Capsule living units would be replaced by a top-mounted crane as newer models evolved, using automobiles as an analogy.  Of Archigram’s concepts, this one most closely corresponds to any of the few Japanese Metabolist projects actually to be built, Nakagin Capsule Tower.

 nakagin-2-scarletgreen

Kisho Kurokawa‘s Nakagin Capsule Tower in Tokyo (photo: Scarletgreen/Flickr) was completed in 1972.  The 8-foot by 12-foot by 7-foot tall capsules were prefabricated off site, installed by crane and bolted to one of two support towers.  Each unit is a complete bachelor apartment with a single porthole window, reflecting Archigram’s space capsule inspiration.  The flexibility of Archigram’s concept was never realized here, as none of the capsules was ever replaced.

 ind-housing

Perhaps the most sophisticated descendant of Nakagin Capsule Tower is the prototype Industrialized Housing System designed in 1991-92 by Richard Rogers Partnership, architects, and Ove Arup & Partners, engineers.  Commissioned by the Korean manufacturer, Hanseem Corporation, the system was intended to provide up to 100,000 apartments in various locations throughout Korea at a fifth the price of conventional homes.  Apartment modules ranging from 139 to 837 square feet would be adaptable to individual lifestyles.  Their installation would be ”carried out by computer-controlled cranes, much like those used to stack containers in ships”.  (Tall Buildings, by Guy Nordenson, Museum of Modern Art, 2003, p.92)  Modular units could be sited directly on the ground or attached to a tower core.  In combination, as shown in the model above, exhibited at MoMA’s 2004 Tall Buildings exhibition (building 14), some of the cellular charm of the Italian hilltown or Greek fishing village emerges.  The rich articulation and human scale of this compellingly developed design set it apart from the other 24 towers in MoMA’s exhibition.

tree_1

The Micro Compact Home concepts, by Horden Cherry Lee Architects and Haack + Hopfner Architects, dating from 2001, include a “tree village” of 30 dwelling capsules mounted to steel columns and clustered around a central vertical circulation core.   As noted in Home Delivery: Fabricating the Modern Dwelling, by Barry Bergdoll and Peter Christensen (Museum of Modern Art, 2008), “An individual unit could be removed, whether for maintenance or replacement, without disturbing the structure at large, similar to Kurokawa’s Nakagin Capsule Tower”.  At 76 square feet, the ingeniously packed, perfect-cube capsules accommodate a surprising range of activities in less space than Nakagin’s capsules.  A model unit was displayed last year in MoMA’s Home Delivery exhibition, which also featured Nakagin Tower.

bayonne-nj

Cranes of the Port Newark Container Terminal loom beyond a Bayonne, New Jersey, trailer park.  Off the architectural high road, trailer parks have long implemented the ideal of mass produced dwelling units plugged into a fixed infrastructure.  Trailers take the concept a step further by allowing homes to easily relocate from one infrastructure to another.  On a separate real-world track, shipping container technology, with its industrialized capsules constantly rearranged by cranes, parallels the ideas of Archigram.

lt_mdu4

The firm LO-TEK, in its multiple Modular Dwelling Unit proposal of 2002, applies container technology to the mobile home precedent by way of a vertical support framework that would realize Le Corbusier’s wine rack analogy, with shipping containers retrofitted into homes serving as the bottles.  LOT-EK’s concept includes drawer-like “subvolumes” that pull out from each container’s body, admitting natural light and creating activity areas larger than the containers’ 8-foot width.  The vertical frames, or “harbors” include stairs, elevators and services.  Harbors would be located in all major metropolitan areas to maximize mobility.  The sustainability of this system begins with repurposing of containers and continues with mobility of dwellings.  The naturally varied appearance of recycled containers corresponds to Corbusier’s use of different colors on the exterior of the Unite d’Habitations to identify individual dwelling units.  Or as LO-TEK puts it, “The vertical harbor is in constant transformation as MDUs are loaded and unloaded from the permanent rack. Like pixels in a digital image, temporary patterns are generated by the presence or absence of MDUs in different locations along the rack, reflecting the ever-changing composition of these colonies scattered around the globe.”  While many real projects, including a hotel, have taken advantage of containers’ stackable-by-design character, LOT-EK’s use of a separate frame would allow true plug-in flexibility.

lt_mdu3

Echoing Archigram’s Plug-in City, the cranes endemic to container yards would insert or withdraw living capsules.  The fixed frame proposed by LO-TEK corresponds to Le Corbusier’s “wine rack”.

freitag-03

Freitag‘s shop in Zurich, 2005, takes advantage of the native stackability of containers.  The company’s product line of bags made from recycled truck tarps is inspired by the same ideas of recycling, found-object-art, and industrial chic that inform container architecture.  Enough notable examples and practitioners of this architecture, including work by pioneers like Wes Jones and Adam Kalkin, have emerged to warrant a book-length survey, Container Architecture, by Jure Kotnik (LINKS, 2008).   The movement taps into the recent explosion of interest in prefab house design, which itself signals a growing public enthusiasm for the application to housing of mass production’s potential for quality control, economy, and consumer choice.  This promise has always been central to the plug-in school of thought, and Le Corbusier’s vision of the house as “machine for living”.

loftcube

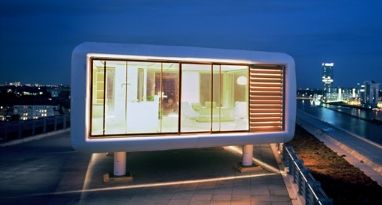

Capsule in search of a host; the mass produced Loftcube, designed by Werner Aisslinger, has been helicoptered onto rooftops and hooked up to existing building services.  The tiny scale of many modular house designs relates to plug-in architecture’s fascination with factory made object-like dwellings, and the over-the-shoulder look that modern architecture has cast on the automobile since Le Corbusier’s 1923 manifesto, Towards a New Architecture.

20_24

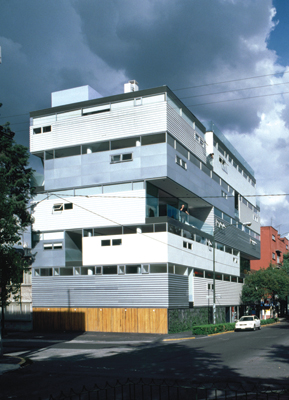

The Adolfo Reyes 58 apartment building in Mexico City, 2000-03, by Dellekamp Arquitectos, is not modular but adopts the appearance of stacked prefab units to individually express dwellings.  This variegated approach is part of a recent trend that borrows from the plug-in tradition and, in this case, the aesthetic of container architecture.

3726264107_590d9993bd_o3

The architecture firm Axis Mundi proposed this alternative design for the MoMA tower in Manhattan earlier this month.  Like Nakagin Capsule Tower, the proposal has a pair of structural/service cores.  The design would allow apartment owners to customize their units’ exteriors.  In a nod to the origin of the new design’s plug-in heritage, the stair below the Marilyn Monroe image is adopted from Le Corbusier’s Unite d’Habitation, below.  (Photo: matt2008/Flickr)

 marseilles-stair-matt2008

2 Responses to “Plug-in Architecture Loses an Icon”

  1. Anonymous Says:

    …uumm Safdie’s Habitat? An unfortunate omission given it’s enduring, wild popularity. A truly successful example which was not only built and celebrated, but still has line-ups to buy a piece of it’s modular beauty.

  2. admin Says:

    Habitat is certainly a milestone of the modular movement and a lastingly poetic evocation of the cellular charm of Mediterranean villages, but was not included because of its lack of a permanent infrastructure spine.
